194 Digital Multimeter
  • Data logging
  • 50,000 count display
  • 0.05% DCV basic accuracy
  • Inductance, Frequency and Capacitance
  • 0 to 750 ACV; max resolution 100uV
  • 0 to 1,000 DCV: max resolution 0.001mV
  • 0 to 50MΩ; max resolution 0.01Ω
  • Audible continuity
  • AC/DC amps up to10 amps; resolution 0.01 uA
  • Analog bar graph
  • cULus 61010-1
  • CATIII-1000VC, CATIII-1000V, CAT IV-600V, CAT III 1000V

Where to Buy TPI Products

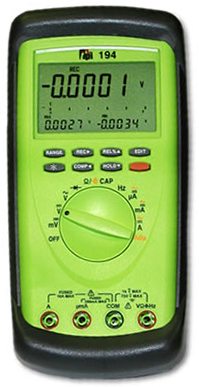

The Triple Display 194 is an innovative new concept in DMM design. The unique display enables you to view more than one event at a time. This eliminates the hassle of switching back and forth to review minimum, maximum or preset comparative values. The meter is also easy to use and built to last.

The DMM 194 is a hand-held autoranging DMM. The backlit LCD can display three readings at one time. In addition to basic function of AC/DC V, AC/DC A, Ohm, Diode test, continuity, Capacitance, Frequency, there is the adaptor function. The meter also has RS232 output and software for recording information into a PC.

The DMM 194 also features:

  • REC: Records Min/Max readings during specified measurement intervals.
  • COMP: Compare actual reading to preset HI and LOW value for Pass/Fail testing of component
  • HOLD: Tow hold system automatically holds the previous stable reading when a new one is obtained.

Additional Features and Benefits of the Model 194:

  • 0.05% accuracy*, 50,000 count display, CAT IV 600volts, True RMS DMM.
  • AC/DC volts, AC/DC amps, resistance, audible continuity, diode test, frequency, capacitance, and temperature Plus: db,inductance, conductance, duty cycle, pulse width and time stamp logging.
  • 0.05% basic DCV accuracy
  • 50,000 count display
  • CAT IV 600 Volts
  • True RMS DMM
  • Time Stamp Logging
  • Optional PC Output with A192
  • Pulse Width
  • Duty cycle (% pulse width modulation) for measuring modulating gas valves

The 194 comes complete with the following accessories:

  • 194 Instrument
  • Rubber Boot
  • Fuse 0.5A
  • Fuse 1oA
  • Test Lead Set
  • 9 Volt Alkaline Battery
  • Instruction Manual

Product Documentationpdf-icon1

Click below to view or download product documentation PDFs:

194 Manual

194 Data Sheet

DMM Selection Guide

Category Ratings:

  • Category I: Usually electronic equipment or equipment where measures have been taken to limit transient over voltages.
  • Category II: Single phase loads like appliance personal computers, television sets, and other household loads. Outlets located more than 30 feet froma CAT III source or more than 60 feet from a CAT IV source.
  • Category III: Distribution level fixed installations like distribution panel devices, short branch and feeder circuits, three phase loads, and single phase commercial lighting.
  • Category IV: Equipment and lines located on the power line side of a service panel or where a low voltage connection is made to utility power

 Model 194 Specifications
 DC Volts  Maximum Input: 1000V
 Maximum Resolution: 0.0001mV
 Accuracy: +/-0.05%

 AC Volts  Maximum Input: 1000V
 Maximum Resolution: 100μμV
 Accuracy: +/-0.4%

 DC Amps  Maximum Input: 10A
 Maximum Resolution: 0.01μA
 Accuracy: +/-0.15%

 AC Amps  Maximum Input: 10A
 Maximum Resolution: 0.01μA
 Accuracy: +/-0.75%

 Resistance (Ohms)  Maximum Input: 50MΩ
 Maximum Resolution: 1mΩ
 Accuracy: +/-0.05%

 Frequency  Maximum Input: 5MHz
 Maximum Resolution: 0.001Hz
 Accuracy: +/-0.05%

 Capacitance  Maximum Input: 20mF
 Maximum Resolution: 0.01nF
 Accuracy: +/-2%

 Inductance  Maximum Input: 300mH
 Maximum Resolution: 0.01mH
 Accuracy: +/-5%

 Temperature

 (K-Type Thermocouple)

 Maximum Input: -54°F to 2462°F (-50°C to 1350°C)
 Maximum Resolution: 0.1°F / °C
 Accuracy: +/-2%

 Continuity  Audible at less than 10Ω

 Diode  3V at 1mA maximum output
 Duty Cycle  Maximum Input: 99.9%
 Maximum Resolution: 0.1%

 True RMS Responding  Yes
 Conductance  Yes
 Pulse Width  Yes
 Data Hold  Yes (Two hold system)
 Min/Max Record  Yes
 Time Stamp Logging  Yes
 Relative Mode  Yes
 Compare Mode  Yes
 RS-232 Output  Yes, Optically Isolated
 Process Loop Output  No
 Sleep Mode / Auto Off  Yes
 Protective Boot  Yes (standard)
 Display Type  50,000 count backlit LCD with dual sub displays and analog bargraph
 Range Selection  Auto/Manual
 Operating Temperature  32°F to 113°F (0°C to 40°C)
 Storage Temperature  -4°F to 140°F (-20°C to 60°C)
 Humidity  80% non-condensing
 Size   8.3” x 3.7” x 1.9” (210mm x 95mm x 47mm) without boot
 8.7” x 4.3” x 2.6 (220mm x 110mm x 65mm) with boot
 Weight   1.3lbs (570g) without boot
 1.9lbs (850g) with boot
 Battery Type  9V Alkaline (NEDA 1604)
 Battery Life  50hrs Typical
 OverInput Category  CAT III 600V
 Agency Approval  cULus 61010-1, IEC 61010-1
 Warranty  Limited Lifetime

TPI Model 194 Demonstration Video

TPI Model 183A vs. Fluke 87

Model 194 Applications

  • Thermocouples in furnaces or gas applications
  • Heat anticipator current in thermostats
  • Line voltage
  • Control circuit voltage
  • Flame safeguard control current
  • Heating element resistance (continuity)
  • Compressor winding resistance
  • Contactor and relay coil resistance
  • Continuity of wiring
  • Motor start and run capacitance
  • Frequency on controls and line voltages
  • Record min/max voltage of controls and line voltages
  • Temperature with optional temperature adapter (A310)
  • Bar graph to indicate rapid fluctuations in measurements
  • Voltage of direct drive DC motors
  • Measure power supply voltage
  • Match components
  • Compare readings in circuits and components
  • Frequency of line and control voltage
