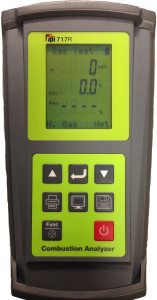

The TPI 717 Combustion Analyzer is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other desirable parameters associated with appliance installation and maintenance.
Fast purge and the ability to perform fuel selection during start up enable tests to be performed quickly without requiring extra set-up time after initial startup. TPI analyzers also use the last selected fuel as the default setting. This feature prevents the need to perform fuel selection every time the analyzer is turned on.
- Combustion Efficiency Analyzer: Measure O2, CO, and flue temperature. Calculate efficiency, excess air, CO2 & (CO/CO2) Ratio.
- CO Analyzer: Measure carbon monoxide in ambient air.
- Differential Manometer: +/- 150 mBar (0.01 mBar resolution). Great for tightness/let by or burner pressure testing.
- Differential Thermometer: Dual input K-Type thermocouple thermometer measures differential temperatures. Ideal for measuring & recording flow & return temperatures.
- Integrated Magnet for hands-free use; Push on fittings for fast and easy use
The TPI 717 combustion analyzer is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other measurements associated with combustion. The instrument is ruggedly constructed and comes with a 3 Year unit and 3 Year sensor Guarantee.
The TPI 717 Flue Gas Analyzer comes complete with the following standard accessories:
- TPI 717 Instrument
- Rubber Boot (A765)
- Soft Carrying Case (A768)
- Flue Sampling Probe (A770)
- In-Line Filter assembly installed on Flue probe (A796)
- Temperature Probe (GK11M)
- Mini Pump Protection Filter Assembly and spare filters (A763)
- Exhaust Spigot (removable) (A764)
- Instruction Manual
The TPI 717 Flue Gas Analyzer has the following options available
- Infrared Printer (A740)
- Spare In-Line Filter (A794)
- Replacement filter for water trap (A762F)
- Field replaceable smart CO sensor (A760S)
- Field replaceable smart O2 sensor (A761S
|Model 717 Features & Benefits|
|10,000 ppm CO Sensor||Longer Life & Quicker Recovery Times after Combustion Tests|
| In-Line Water Trap
| Prevent additional servicing costs due to damaged sensors
caused by water ingress
| In-Line Mini Pump
| Prevent additional servicing costs due to blocked pump caused by
|Multi-Fuel||Not limited to the type of jobs you can accept to work on|
|Soft Carry Case|| Keeps your equipment & accessories together & secure
in one handy place
|Diagnostic Software|| Save time & money by preventing the need to return
the analyzer for unnecessary repairs
| Readings Output to
(Optional) IR Printer
| Keep permanent print-outs of recorded readings for your records
& the customers
| 3 Year Unit & 3 Year
|Complete peace of mind over the life of the analyzer|
| CO Build Up
|Save time by having the analyzer record the CO Build Up levels in a Room|
|Tightness Test Software||Save time by having the analyzer record the Test Pressure Readings|
|Model 717 Specifications|
|Operating Temperature Range||14°F to +122°F (-10°C to +50°C)|
|Battery||1.5V AA (3)|
|Charger Input Voltage||115V or 230V : 50/60 Hz AC|
|Fuels|| Natural Gas, LPG, Light Oil, Heavy
Oil, Bituminous Coal,
Anthracite Coal, Coke, Butane, Wood, Bagasse
|Pressure Ranges||mbar, kPa & inH2O|
|Display||Backlit Graphic LCD|
|Data Storage||50 sets of readings, multiple pages|
|Time and Date||24 Hour Real Time Clock|
|Dimensions||200mm x 90mm x 60mm|
|Casing||Rubber Boot as Standard|
|Flue Temperature Probe|
|Construction||Pistol Grip with Stainless Steel Shaft|
|'K' Type Thermocouple Accuracy||+/- 0.3%, +/- 1˚C|
|Carbon Monoxide||0-10,000 ppm||1 ppm|| <20ppm +/- 3 ppm
>100ppm +/- 5%
|Carbon Dioxide (calculated)||0-25%||0.1%||+/- 0.3%|
|Selectable Ranges||mbar, kPa and inH2O|
|Range||- 150 mbar to + 150 mbar|
|Resolution||0.01 mbar & 0.1 mbar|
|Accuracy||+/- 0.5% fsd|
Frequently Asked Questions
Can I use my analyzer on Oil Fired Appliances?
Yes. Please ensure that the analyzer is set to the correct fuel and that the additional oil filter (A773) is fitted. It is also recommended to use a smoke pump before performing any analyzer test. NOTE: Do not use the A773 oil filter if an NO/NOx sensor is fitted
Can I use my analyzer to perform Tightness Tests?
Yes. All TPI Flue Gas Analyzer models have pressure which will allow all types of pressure testing to be performed; the 716 has in-built software which makes Tightness Testing even easier to perform.
Can I read Flow & Return Temperatures with a TPI Analyzer?
Yes. All TPI Flue Gas Analyzer models have Differential Temperature (Dual Inputs) which enables 2 temperatures to be taken at the same time and the difference calculated and displayed.
